12-24V Changeable 2 in 1 RGB RGBW 24keys Remote Controller

Category

The controller can be used for various lighting applications in home, entertainment and commercial spaces as well as event decorations – providing flexibility and creativity when lighting various environments.



Why Choose Us

Type Remote Control
Max. Load Power 80W(5V); 192W(12V); 384W(24V)
Place of Origin Guangdong, China
Lighting solutions service Project Installation
Brand Name Burning LED
Special RGB, RGBW 2 in 1
RF frequency RF433.92Mhz
Short Circuit Protection Yes
Memory function Yes
DIY function Yes
Certifications CE,ROHS
Remote distance Up to 20M
Output current 5A (RGB), 4A (RGBW)
Controller Size L160*W46*H25 mm
Speed stage 100 grade

package&shipping

Here are the features and specifications of an LED strip controller: 12-24V, Color Changeable, 2-in-1 RGBW RGBRGB Controller with 24keys RF Controller, and Remote.

1. Wide Voltage Range: The LED strip controller supports an output voltage range between 12-24V, making it compatible with various LED strips and power supplies within this voltage range.

2. Dynamic and Colorful Adjustability: The controller allows for dynamic and colorful variations to lighting effects, including smooth transitions and vibrant hue variations that create visually striking lighting displays.

3. 2-in-1 RGB RGBW Controller: This controller was specifically created to work with both RGB and RGBW LED strips, giving you control over both traditional RGB light strips as well as those featuring an additional white LED for increased lighting options and versatility.

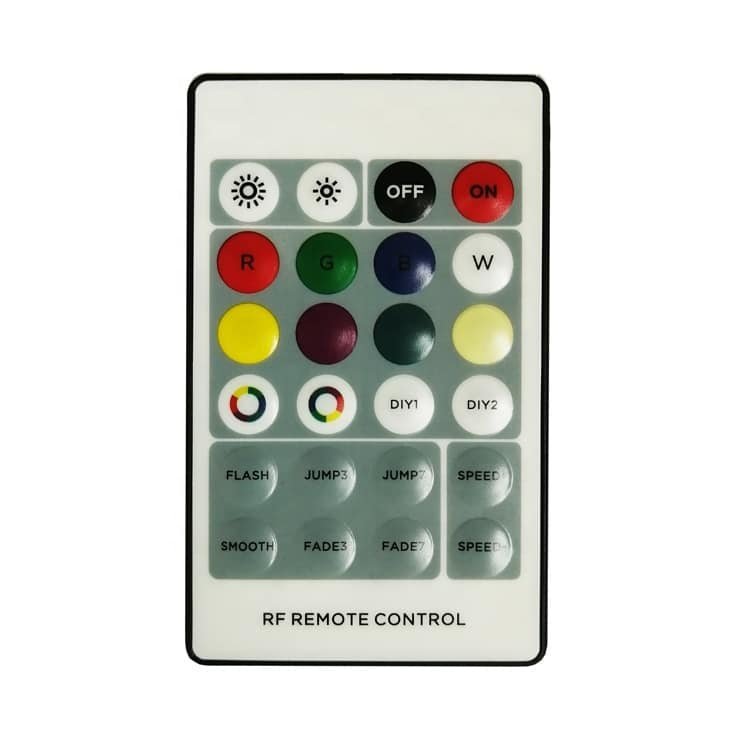

4. 24-Key RF RGB Controller: This remote control comes equipped with 24 keys for easy and intuitive operation, giving quick access to various lighting modes, colors, brightness levels and speed control settings.

5. RF Remote Control: For greater flexibility and convenience, this controller utilizes radio frequency technology for remote control capabilities of LED strip lights. You can easily manage them from a distance without the direct line-of-sight requirement allowing greater convenience.

6. Multiple Lighting Modes: The controller offers an assortment of lighting modes that you can select, such as static colors, dynamic color-changing modes, fade effects and strobe patterns – you can tailor lighting to meet the occasion or mood!

7. Adjustable Brightness: With the controller, you have the ability to easily alter the brightness of LED strip lights to suit any environment and create the ideal lighting level. This enables you to set just the right mood lighting in any environment.

8. Speed Control: The controller features speed control options that enable you to manage the pace at which the lighting effects change, giving you complete flexibility over fast or smooth transitions. With these tools at your disposal, creating fast-paced dynamic effects is possible or slow and seamless transitions can also be created with ease.

9. Simple Installation and Use: LED strip controllers are specifically designed to make installation and use as straightforward and straightforward as possible, typically coming equipped with clear instructions and being easily connected via standard connectors or terminals to both power sources and LED strips.

10. Versatile Applications: The controller can be used for various lighting applications in home, entertainment and commercial spaces as well as event decorations – providing flexibility and creativity when lighting various environments.



Working temperature -20-60℃ Supply voltage DC5V-24V
Static power consumption <1W Connecting mode common anode

Grayscale

1024 levels(RGB each) Speed stage 100 grade
External dimension L70*W40*20mm Packing size L90*W54*H32 mm
Net weight 45g Gross weight 70g
Output 3/4 channels Max. Output current 5A (each channel), total 16A
RF frequency 433.92Mhz Remote distance Up to 20M
PWM frequency 1.95KHz Memory function Yes

Short-circuit protection

Yes

Max. Output power

80W(5V); 192W(12V); 384W(24V)

Working temperature -20℃~45℃ Supply voltage DC3V(CR2025)
Standby current 3.3uA Working current 12mA
Standby power 9.9uW

Working power

36mW
Net weight 25g RF frequency 433.92MHz
External dimension L85*W51*H6mm RF distance

≤20m
