Description
1.The Mirror Touch Dimmer Switch is a smart switch specially designed for all kinds of bathroom smart light mirrors, bathroom anti-fog light mirrors, LED light mirrors, mirror cabinets and other products, and for control closed areas are formed in the places of the buttons by removing the reflective layer.
3.The smart touch control sensor switch is used to turn on / off 12V LED lamps with power up to 3A 36W.
4.The switch is equipped with 2 modes(dimming; color adjusable) available.
5.This sensor switch will memorize the status of the dimming in 12VVDC.
ATTENTION! The outer contour of the picture must be closed! An open contour of the pattern is not allowed.
2.This touch switch has a beautiful appearance, reliable performance, installation convenience, slim size, sensitive touch etc.,suitable for touch sensing control on the surface of various mirror lamps or other glass.
3.The smart touch control sensor switch is used to turn on / off 12V LED lamps with power up to 3A 36W.
4.The switch is equipped with 2 modes(dimming; color adjusable) available.
5.This sensor switch will memorize the status of the dimming in 12VVDC.
|

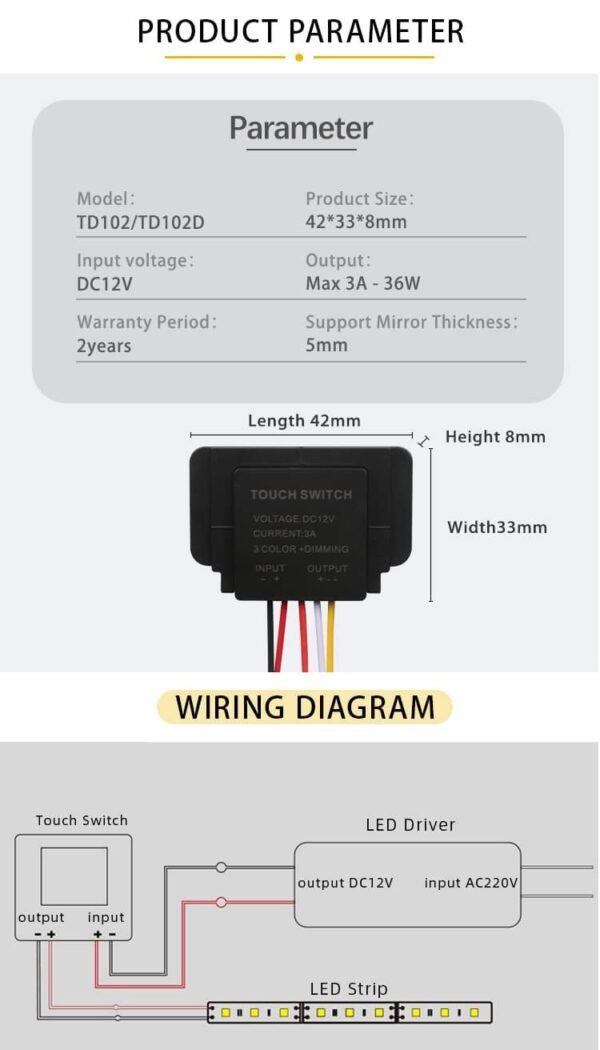

Product Name
|
36W 3A One-Button Mirror Touch Switch
|
|
|

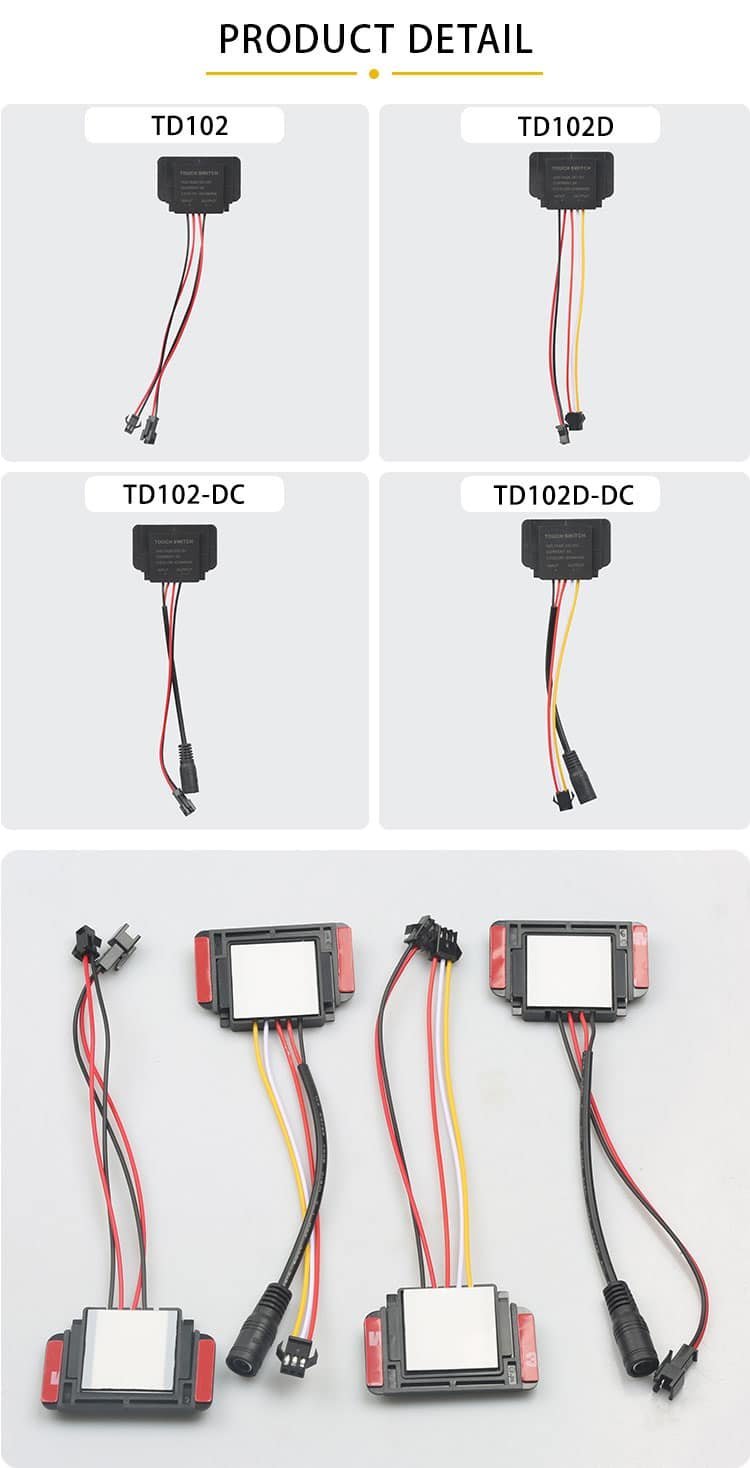

Model No
|
TD102
|
TD102D
|
|
Function
|
ON/OFF+Dimming
|
Tricolor+Dimming
|
|
Input Voltage
|
DC12V
|
|
|
Max Load
|
3A 36W MAX
|
|
|
LED Indicator
|
Blue (OFF Mode); White (ON Mode)
|
|
|
Cable Length
|
Input: 20cm；Output: 20cm
|
|
|
Color Available
|
Black
|
|
|
Dimension
|
42 x 33 x 8mm
|
|
|
Support Mirror Thickness
|
≤ 5mm
|
|
|
Features
|
Long touch, LED Backlight off
|
|
ATTENTION!
1.Touch switches are demanding on the quality of the power source. Before buying a power supply, be sure to consult with our
manager. The manager will select for you a power source that is guaranteed to be compatible with the sensor you have chosen.
Incorrect selection of the power supply may result in the failure of the sensor (this is not a warranty case).
manager. The manager will select for you a power source that is guaranteed to be compatible with the sensor you have chosen.
Incorrect selection of the power supply may result in the failure of the sensor (this is not a warranty case).
2.Regular adhesive tape is designed to facilitate installation and testing of the product. After checking the correct
installation and operability, it is recommended to fix the fixing plate additionally with the help of glue-sealant for mirrors or
glue for a heat gun.
installation and operability, it is recommended to fix the fixing plate additionally with the help of glue-sealant for mirrors or
glue for a heat gun.
